MID49 Micro Rosette TWIST Mount Kit (1/4-20 to 1/4-20)

MID49 Micro Rosette TWIST Mount Kit (1/4-20 to 1/4-20)

€225.00 exkl. MwSt.

Modular Monitor Mounting Arm
Mount & Adjust 5-7" Monitor on Rig
90° Bend & TWIST Mounts
TWIST Spuds for Easy Mounting
Micro Rosette Arms in 5 Lengths

External warehouse, approximately 10 days or more

EAN: 737879864258 Artikelnummer: M49-MRO-TMK-A142-A142 Kategorien: EVF Accessoires, Rig Accessories

Beschreibung

Überblick

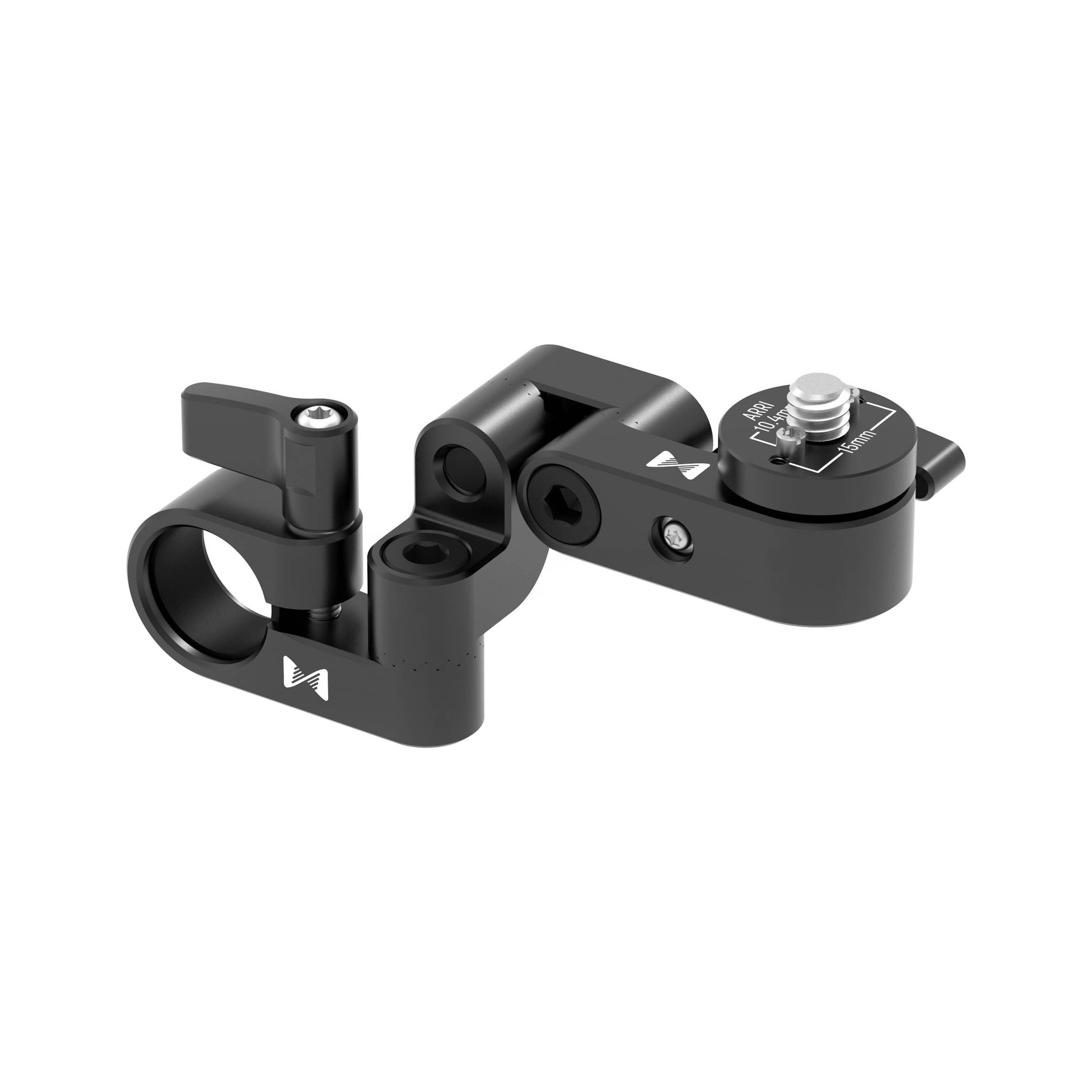

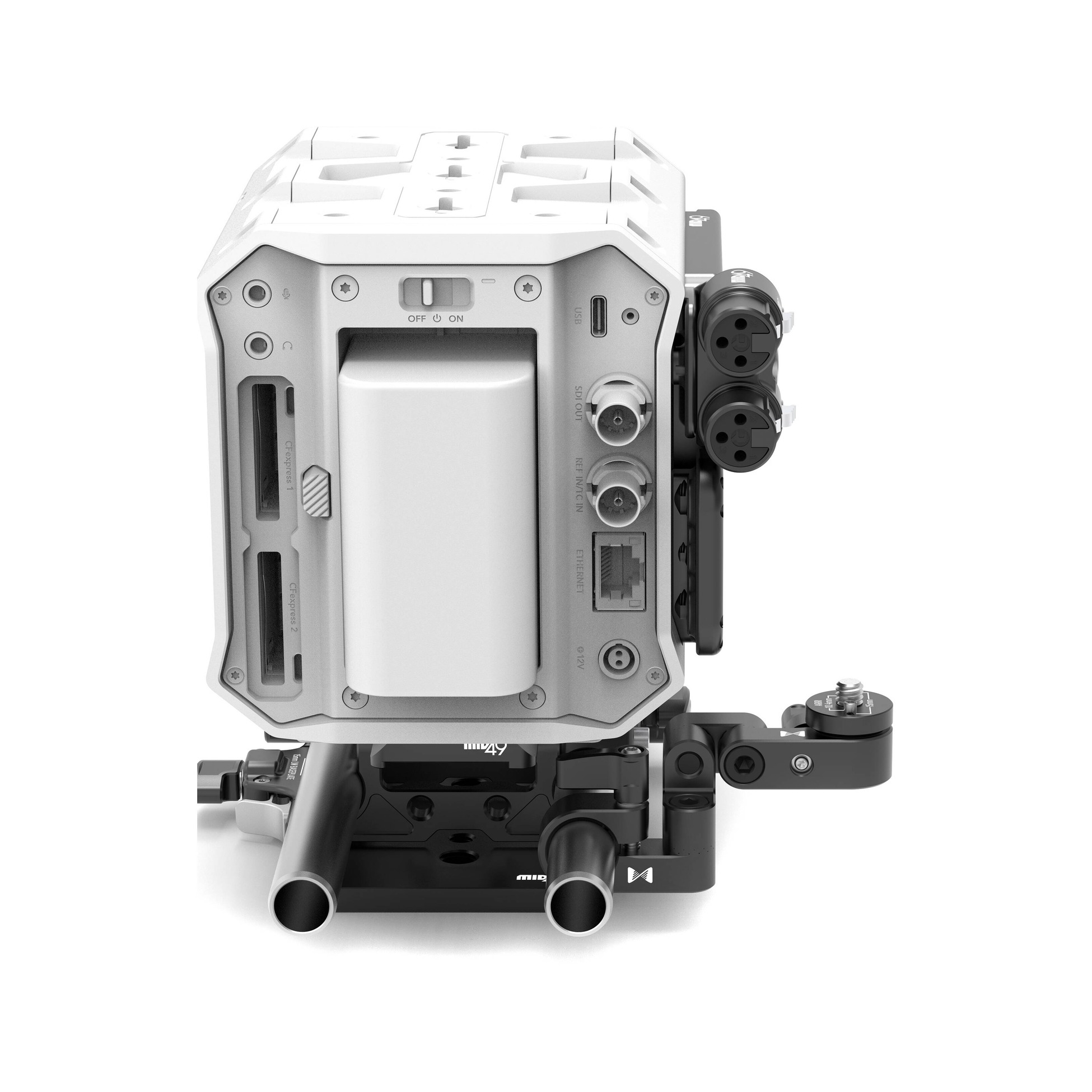

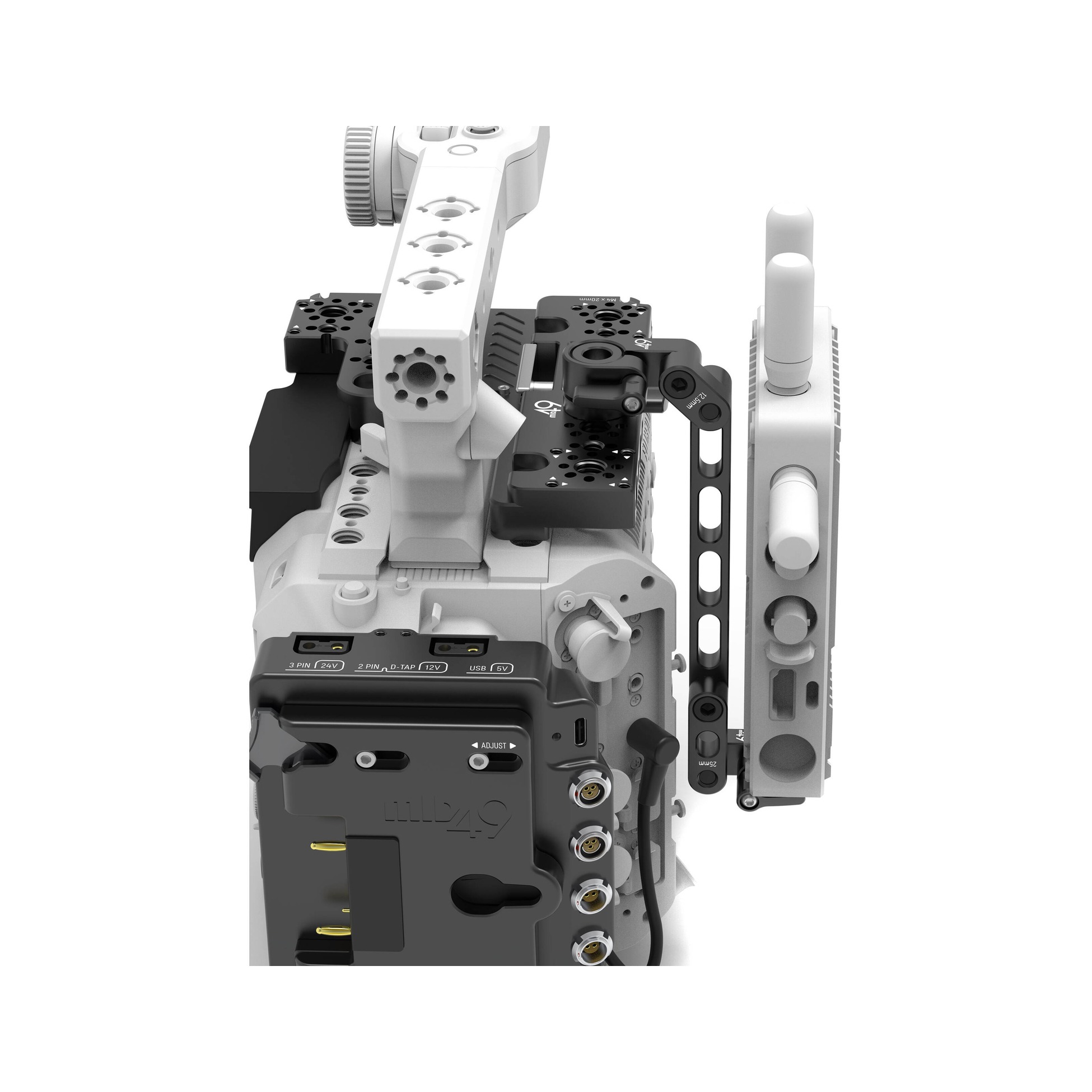

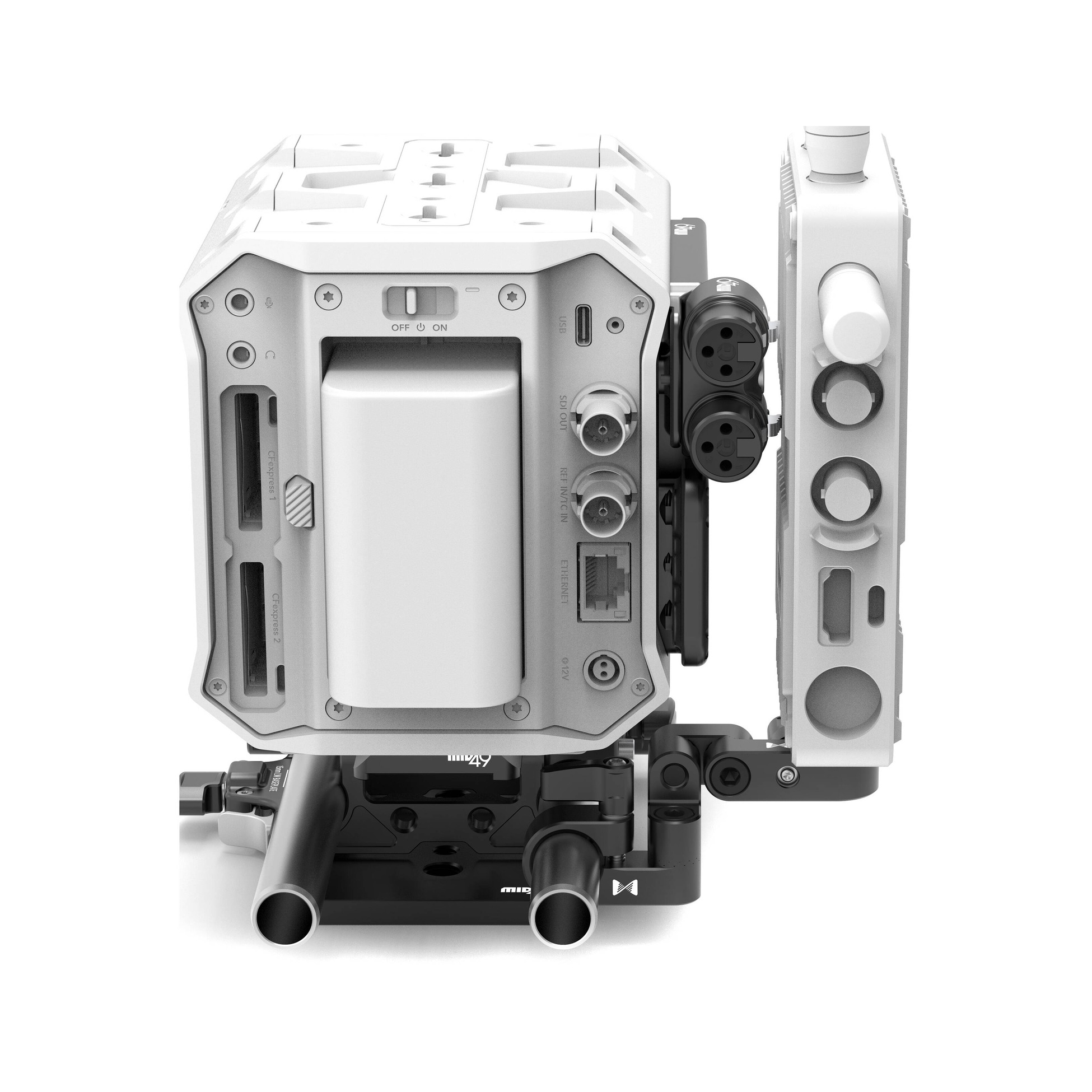

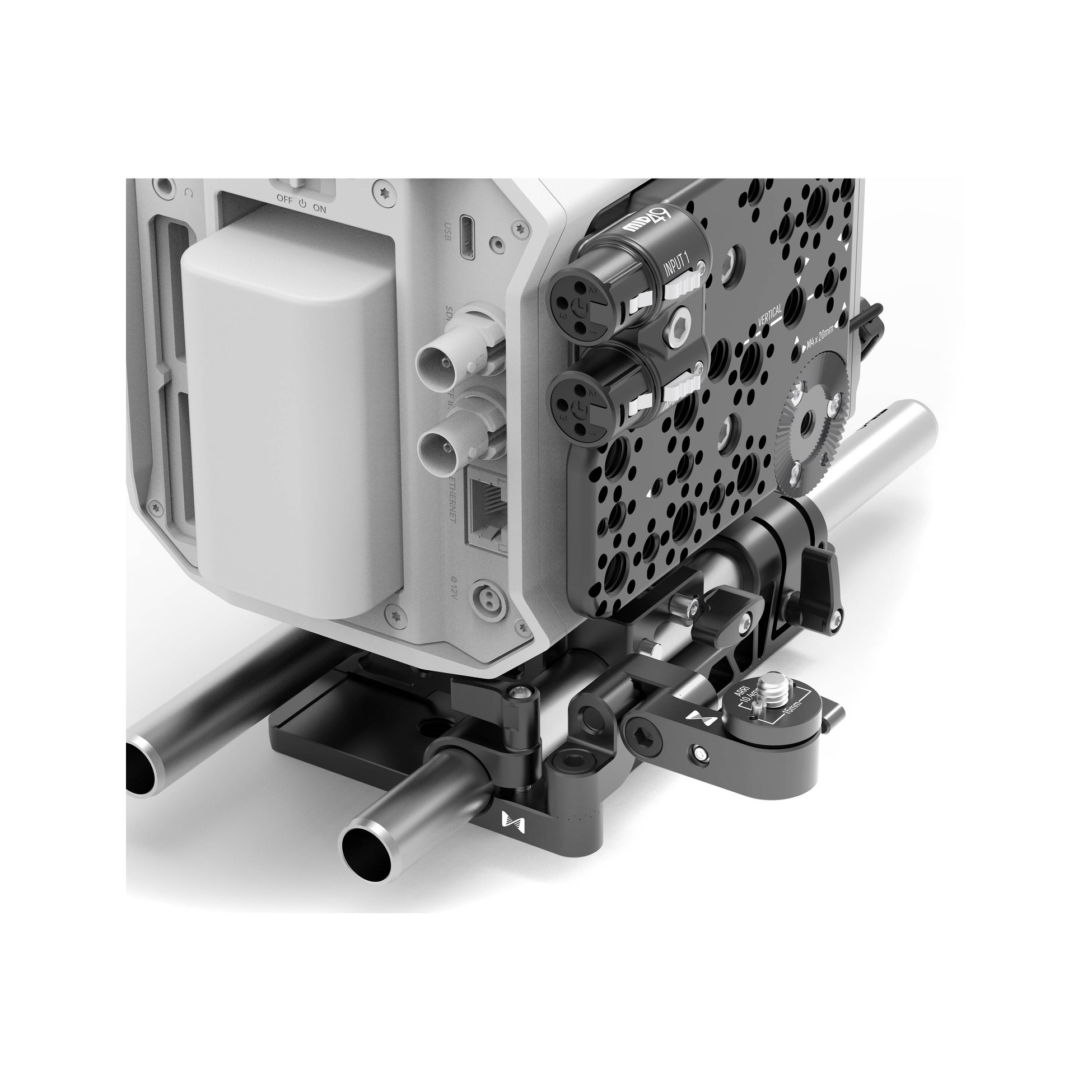

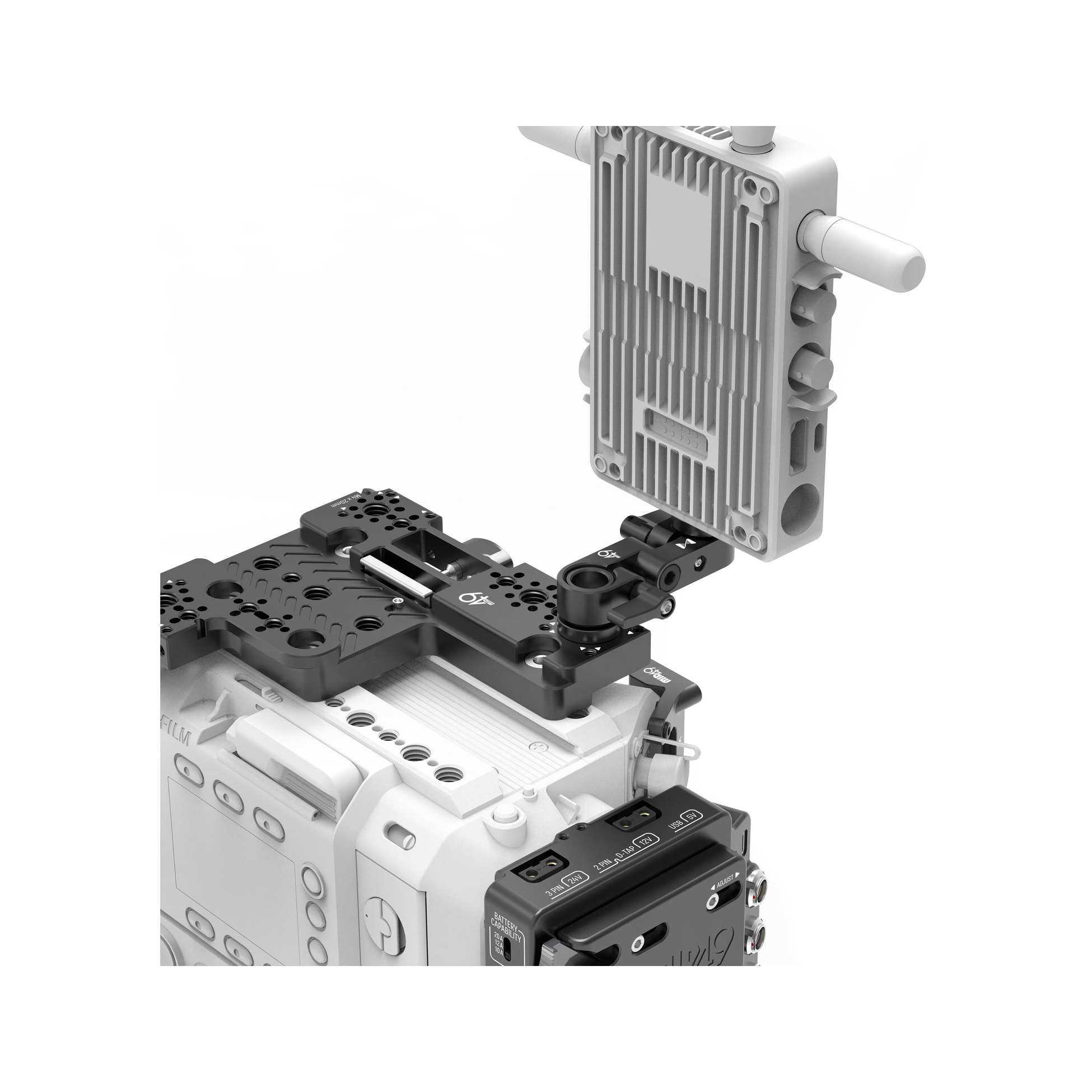

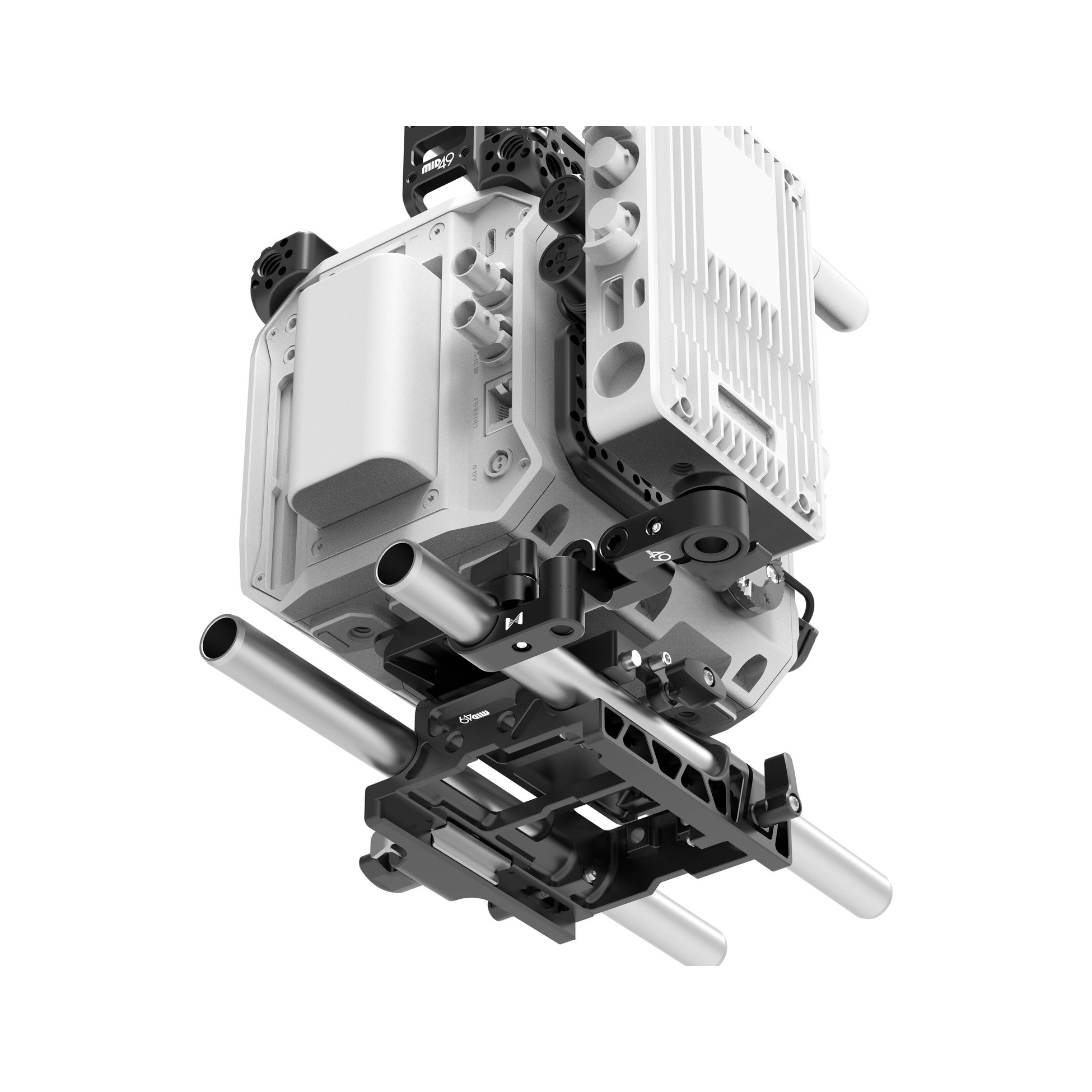

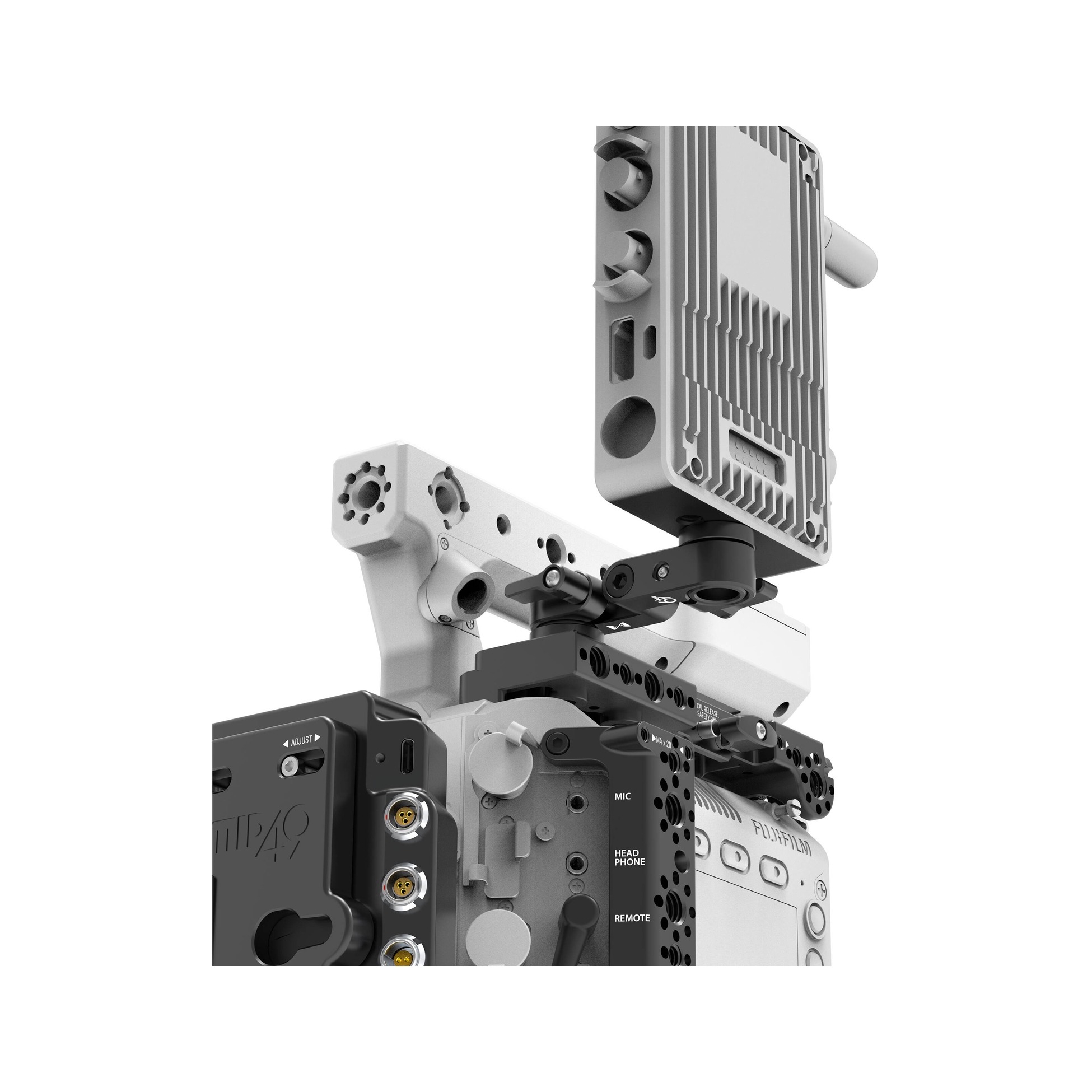

The MID49 Micro Rosette TWIST Mount Kit is a modular mounting solution for mounting and adjusting a 5-7" monitor on a camera rig.

The kit includes Micro Rosette TWIST Mounts, Bend mounts, Rosette Arms in five lengths, and 1/4"-20 TWIST Spuds for a variety of mounting configurations.

Features

Designed for mounting and adjusting a 5-7" monitor on a camera rig
Includes two MID49 Micro Rosette TWIST Mounts
Includes two Micro Rosette Bend mounts
Provides Rosette Arms measuring 0.5", 1", 2", 3", and 3.9"
Supports mounting in a variety of configurations

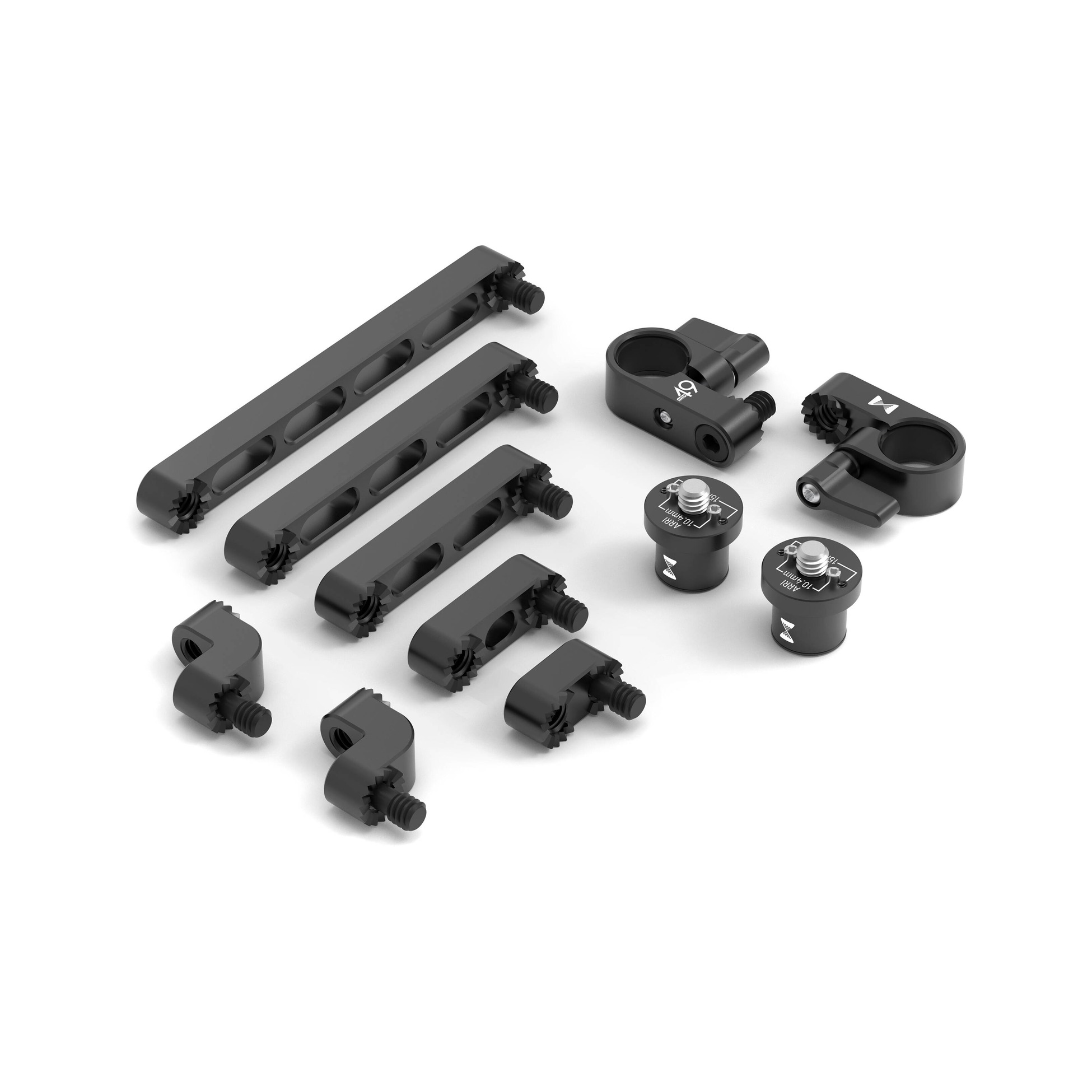

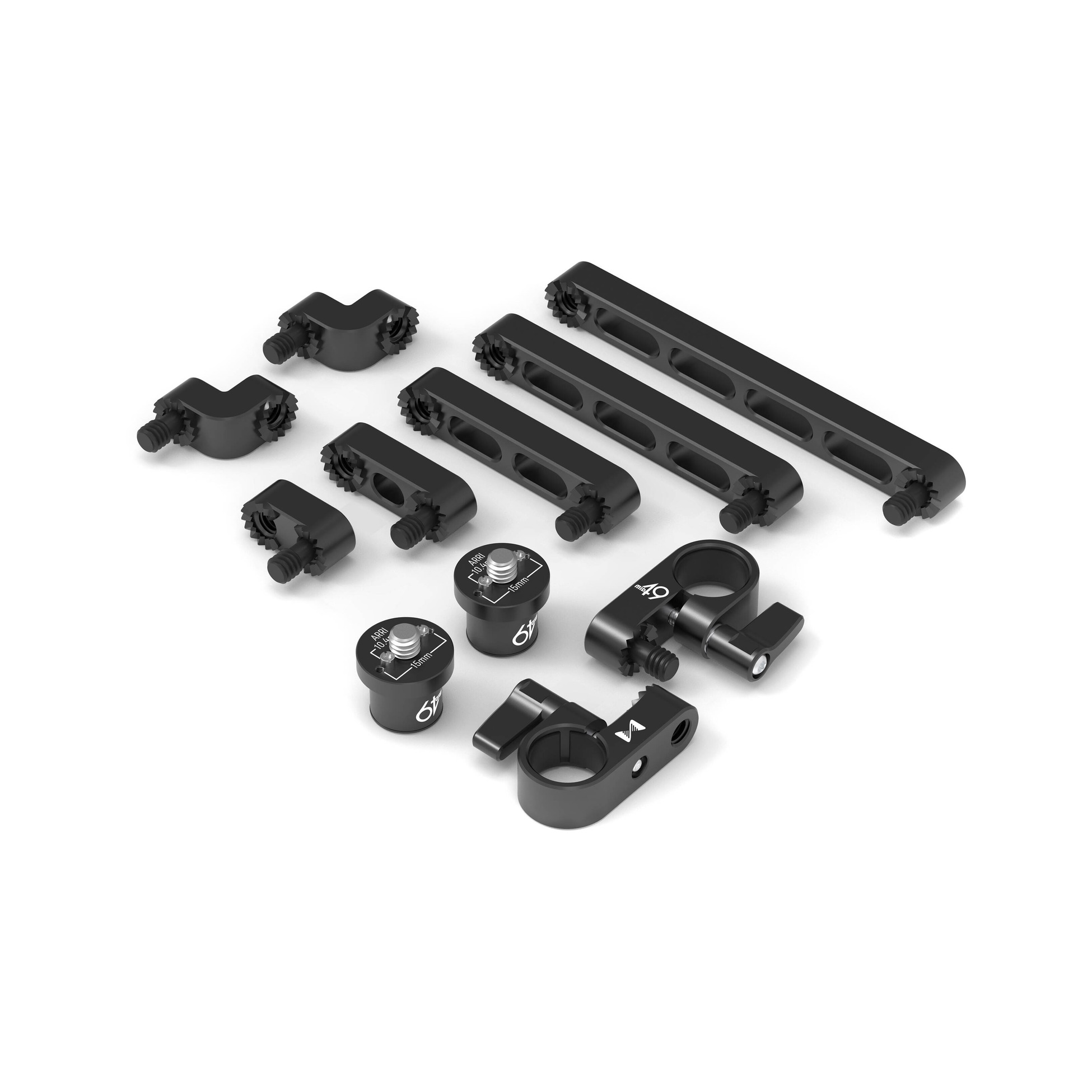

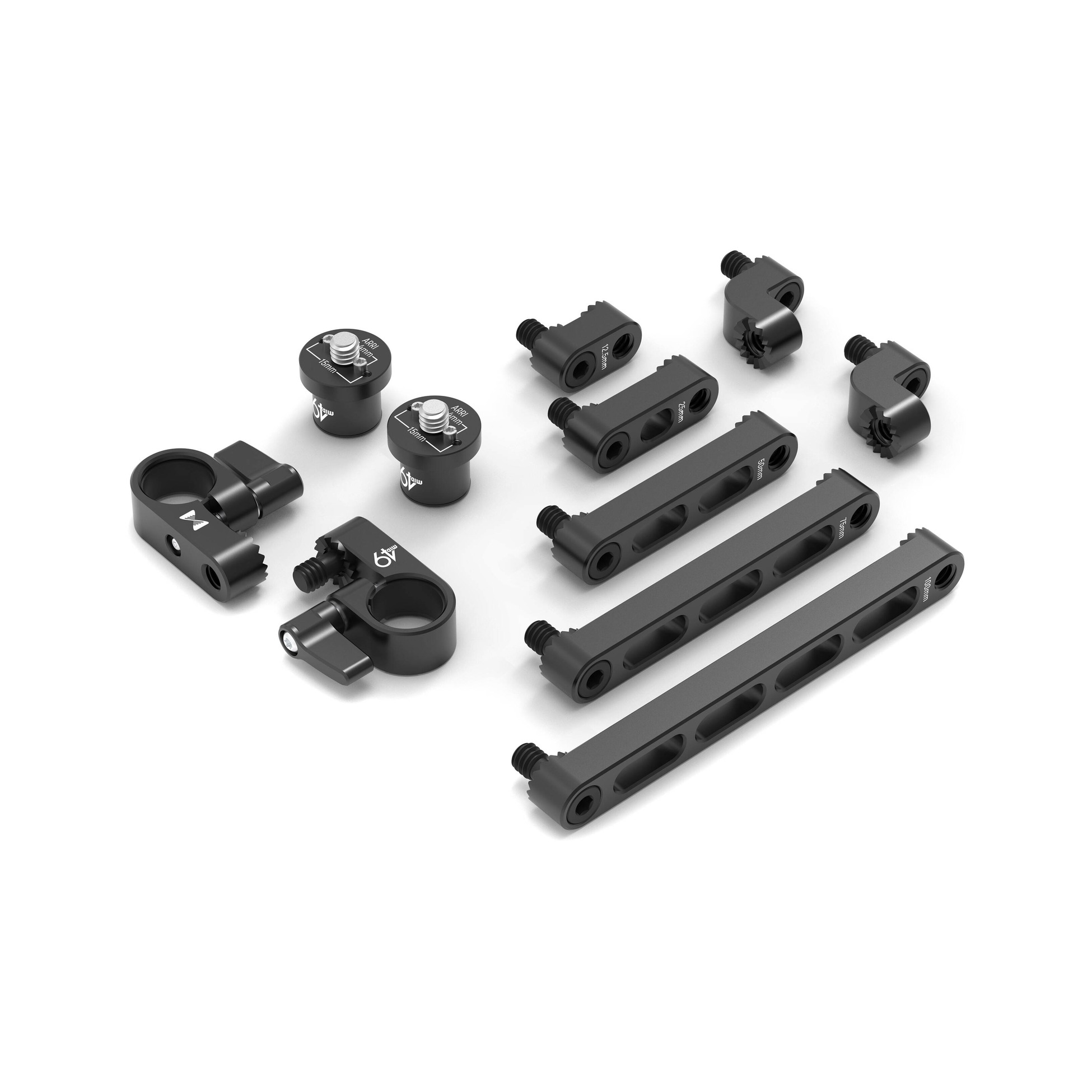

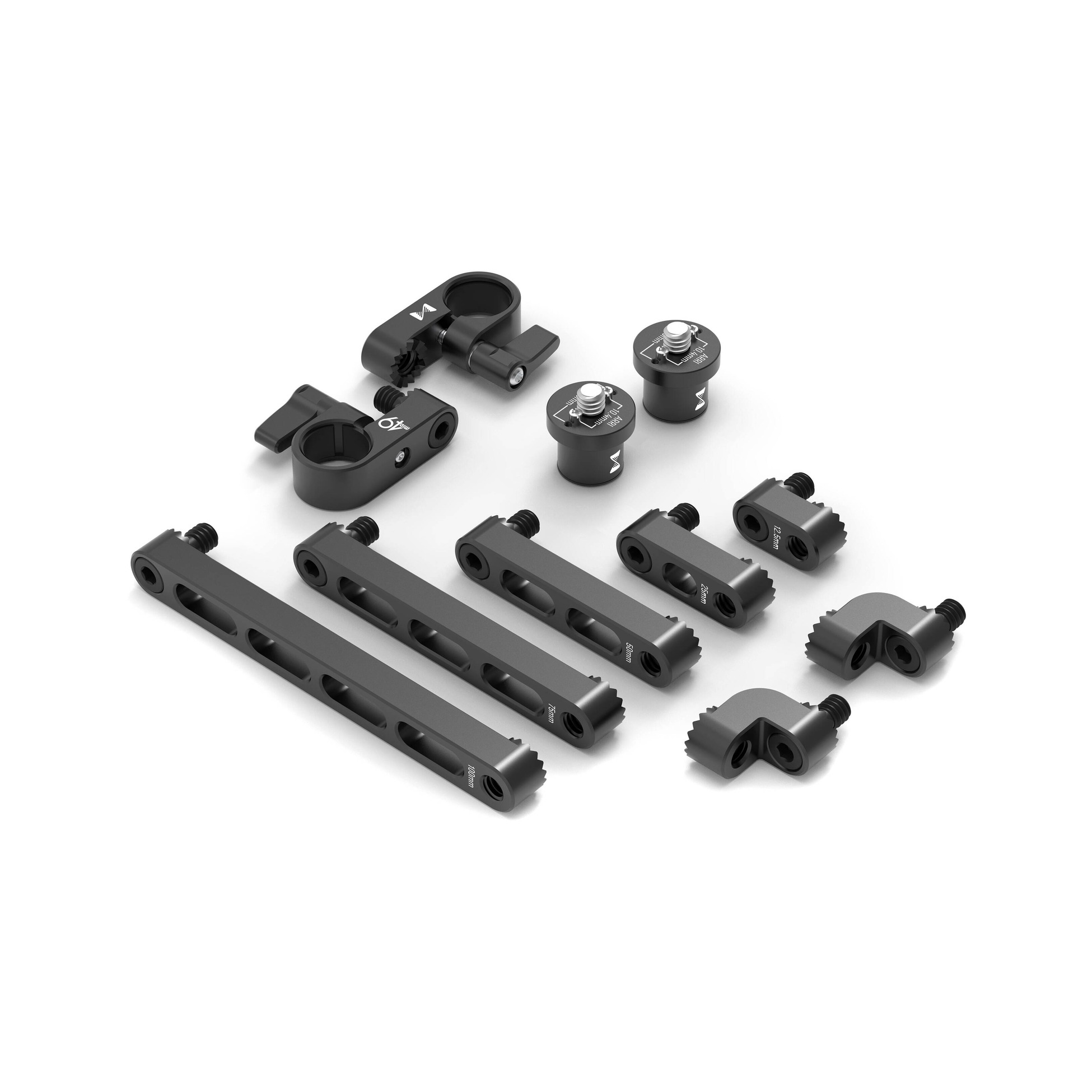

Included

2 x MID49 TWIST Mount EVF Spud with ARRI 1/4"-20 Screw
2 x MID49 Micro Rosette Bend
MID49 Micro Rosette to TWIST Mount (Screw)
MID49 Micro Rosette to TWIST Mount (Hole)
MID49 Micro Rosette Arm (0.5")
MID49 Micro Rosette Arm (1")
MID49 Micro Rosette Arm (2")
MID49 Micro Rosette Arm (3")
MID49 Micro Rosette Arm (3.9")

Specifications

2 x MID49 TWIST Mount EVF Spud with ARRI 1/4"-20 Screw

Compatibility	Blackmagic Design PYXIS Monitor SmallHD Indie 5 / Cine 5 / Ultra 5 ARRI Camera Control Monitor CCM-1 PORTKEYS LH7P
Mounting	1x 15 mm Rod 1x ARRI 1/4"-20 Screw
Color	Black
Dimensions	0.8 x 0.8 x 0.7" / 20 x 20 x 19 mm
Weight	0.4 oz / 10 g
Package Weight	0.05 lb / 0.02 kg
Box Dimensions (LxWxH)	3.7 x 2.3 x 0.85" / 9.40 x 5.84 x 2.16 cm

2 x MID49 Micro Rosette Bend

Compatibility	MID49 Micro Rosette TWIST Mount / Micro Rosette Arms
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black

MID49 Micro Rosette to TWIST Mount (Screw)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Male Screw
Color	Black
Package Weight	0.07 lb / 0.03 kg
Box Dimensions (LxWxH)	3.8 x 2.05 x 1" / 9.65 x 5.21 x 2.54 cm

MID49 Micro Rosette to TWIST Mount (Hole)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Female Thread
Color	Black
Package Weight	0.04 lb / 0.02 kg
Box Dimensions (LxWxH)	3.55 x 2.15 x 0.85" / 9.02 x 5.46 x 2.16 cm

MID49 Micro Rosette Arm (0.5")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (1")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (2")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	3" / 75 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3.9")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	3.9" / 100 mm (Length from Center Screw to Center Thread)
