Overzicht
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.
Features
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
In The Box

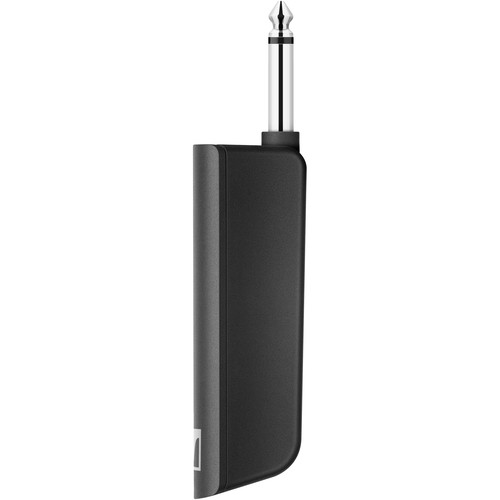

Sennheiser XSW-D INSTRUMENT TX 1/4″ Plug-On Transmitter (2.4 GHz)

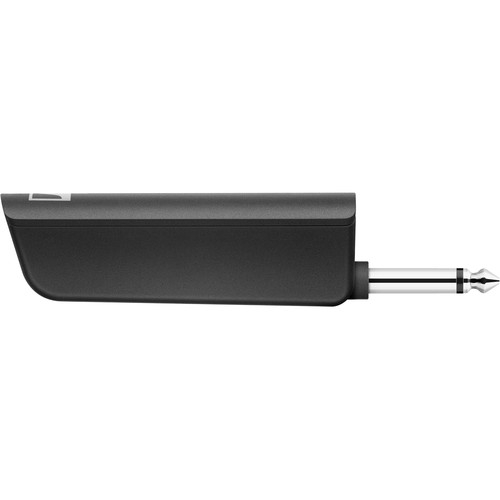

Sennheiser XSW-D INSTRUMENT RX 1/4″ Plug-In Receiver (2.4 GHz)

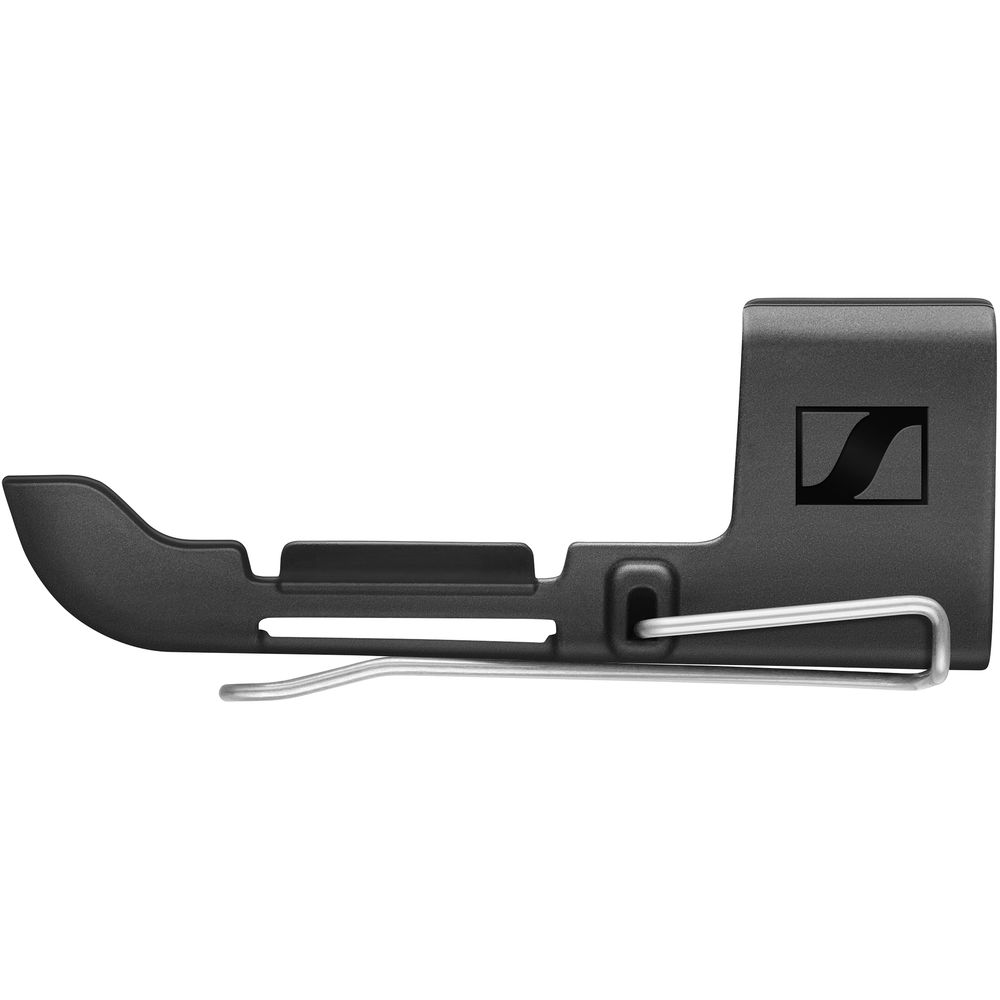

Belt Clip

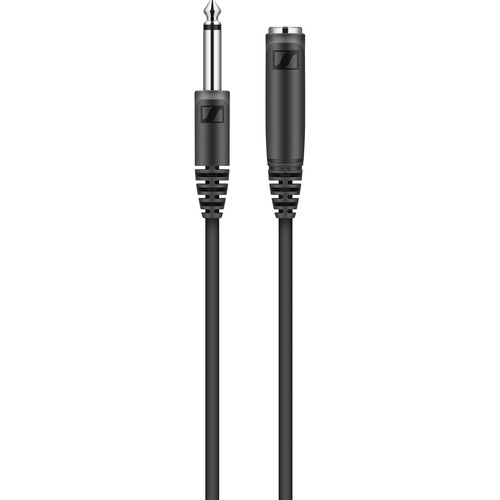

1/4″ Female to 1/4″ Male Extension Cable
Colored Stickers for Labeling

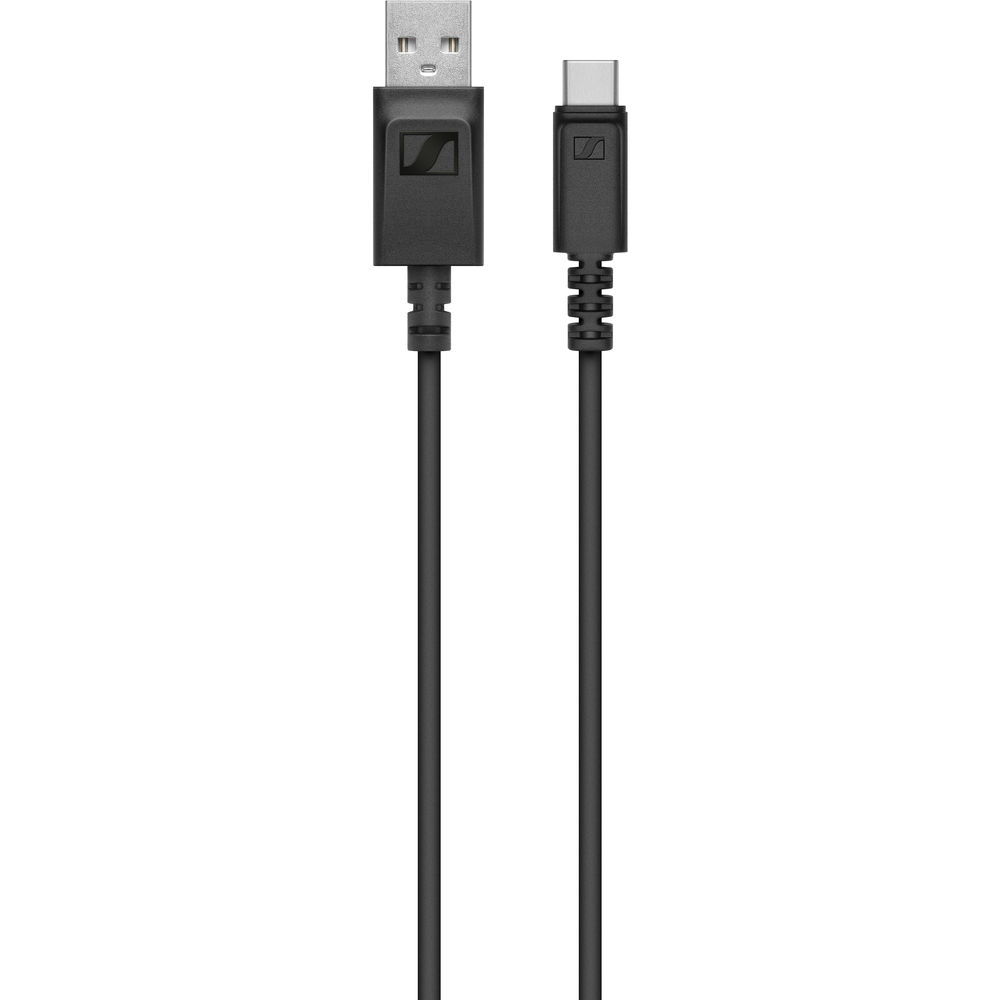

USB Type-A to USB Type-C Charging Cable
Limited 2-Year Manufacturer Warranty
Specifications
| Wireless Technology |
Digital 2.4 GHz
|
| Included Transmitters |
1x Plug-On
|
| Diversity |
Non-Diversity
|
| RF Frequency Band |
2400 to 2483.5 MHz
|
| RF Bandwidth |
83.5 MHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
246.1′ / 75Â m
|
| Max Transmitters per Band |
1
|
| Mobile App Compatible |
No
|
| Modulation |
GFSK
|
| SNR |
≥106 dB
|
| THD |
<0.1 %
|
| Receiver Type |
Plug-In (1/4″ TS)
|
| Mounting Options |
Plug-In (with Included Hardware)
|
| Antenna |
1x Internal
|
| Number of Audio Channels |
1
|
| Audio I/O |
1x 1/4″ TRS Unbalanced Output
|
| Audio Output Level |
12 dBu
|
| Frequency Response |
10 Hz to 18 kHz
|
| USB/Lightning Connectivity |
1x USB-C Female (Host Connection)
|
| Power Requirements |
Batterij
|
| Battery Type |
1x Built-In Rechargeable
|
| Internal Battery Capacity |
850 mAh
|
| Battery Charging Time |
3 Hours
|
| Receiver Battery Life |
5 Hours
|
| Display & Indicators |
1x LED (Battery Status, Sync)
|
| Operating Temperature |
32 to 140°F / 0 to 60°C
|
| Dimensions |
4.8 x 0.9 x 1.1″ / 122 x 24 x 28Â mm
|
| Weight |
2.7Â oz / 77Â g
|
| Transmitter Type |
Plug-On
|
| RF Output Power |
10 mW (EIRP)
|
| Audio I/O |
1x 1/4″ TRS Male Output
|
| Included Cable Connector |
1/4″ TRS
|
| Pad |
No
|
| Muting |
Mute Switch
|
| Frequency Response |
10 Hz to 18 kHz
|
| Sync Method |
NFC
|
| Antenna |
1x Internal Single-Band Helical
|
| Power Requirements |
Batterij
|
| Battery Type |
1x Built-In Rechargeable
|
| Internal Battery Capacity |
850 mAh
|
| Transmitter Battery Life |
5 Hours
|
| USB I/O |
1x USB-C
|
| Display & Indicators |
1x LED (Battery Status, Sync)
|
| Operating Temperature |
32 to 140°F / 0 to 60°C
|
| Dimensions |
3.4 x 0.9 x 1.1″ / 86 x 24 x 28Â mm
|
| Weight |
2.7Â oz / 77Â g
|
