Nanlux Evoke 5000 Bi-color Spot Light with Reflector
€14,545.00 excl. IVA
- For Studio & Film/TV Production
- Output: 555,250 Lux at 3.3′ (5600K)
- 2700-6500K CCT; Bi-Color Mode
- 100-240V AC Power
- Onboard, MX, App, and Remote Control
- CRI 97 | TLCI 98 | TM-30 Rg 102
- Five Fan Modes; NL Mount
- +/- 80 Green/Magenta Tint Adjustment
- Continuous 0.1% Dimming Capabilities
- IP66 Rating for Weather Resistance
External warehouse, approximately 10 days or more
Overzicht
The Evoke 5000B LED Bi-Color Monolight from Nanlux is a powerhouse of illumination, delivering an impressive 5000W of lighting power tailored for professional videographers and filmmakers. Engineered for versatility, this high-performance fixture, when paired with its reflector at 5600K, achieves a staggering 555,250 lux at 3.3 feet, making it ideal for expansive studio environments, outdoor shoots, and large-scale productions.
At the core of its advanced lighting technology lies the Nebula B4 light engine, ensuring exceptionally accurate 2700K-6500K color temperature reproduction with precise ± green and magenta tint adjustments. Designed specifically for film and TV production, its all-in-one construction seamlessly integrates the lamp head, control unit, and power adapter into a single, streamlined unit.
Crafted for durability, the IP66-rated monolight withstands extreme weather conditions, ensuring uninterrupted performance in any environment. Its 0-100% dimming range, with fine 0.1% step increments, allows for precise intensity control, adapting seamlessly to any lighting scenario.
To further enhance its adaptability, the Evoke 5000B is equipped with Nanlux’s proprietary NL mount, granting access to a wide range of modifiers, including those from the Evoke 2400B’s accessory ecosystem. Whether you’re illuminating a cinematic scene or lighting up a vast outdoor space, the Evoke 5000B offers unmatched power, precision, and reliability for demanding productions.

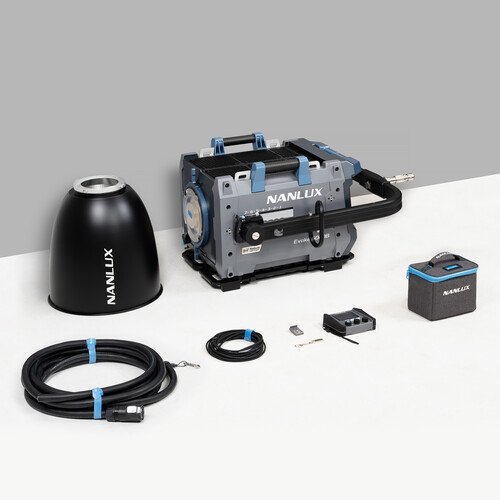

Included
Nanlux Evoke 5000B LED Bi-Color Monolight
Motorized Yoke
AC Cable
Reflector
USB Flash Drive
WC-EXT Wired Controller Kit
Limited 3-Year Manufacturer Warranty
Specifications
| Item Type |
1x LED Monolight
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
45° at 5600K:
51,582Â fc / 555,250Â Lux at 3.3′ / 1 m (with Reflector)* 2063Â fc / 22,210Â Lux at 16.4′ / 5Â m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2700 to 6500K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 98 TM-30 Rf 96 TM-30 Rg 102 SSI 85 at 3200K SSI 74 at 5600K |
| Dimming |
App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM
|
| Cooling System |
Fan
|
| Beam Angle |
95° Unmodified
45° with Included Reflector |
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Wireless CRMX
Bluetooth Radio/RFÂ *Remote Not Included |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Nanlink App 2.0 Functionality: Remote Control |
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
1x Unspecified AC Power Input
1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 2x RJ45 Network Input/Output 1x Unspecified Remote Input 1x USB-A Firmware Input |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Included Adapter / Cable |
Yes
|
| Power Pass-Thru |
No
|
| Power Consumption |
5200 W (Maximum)
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8″ Stud (Via Yoke Mount)
|
| Display |
Yes
|
| Environmental Resistance |
Weather-Resistant (IP66)
|
| Materials |
Magnesium Aluminum Alloy
|
| Weight |
95.06Â lb / 43.12Â kg
|
