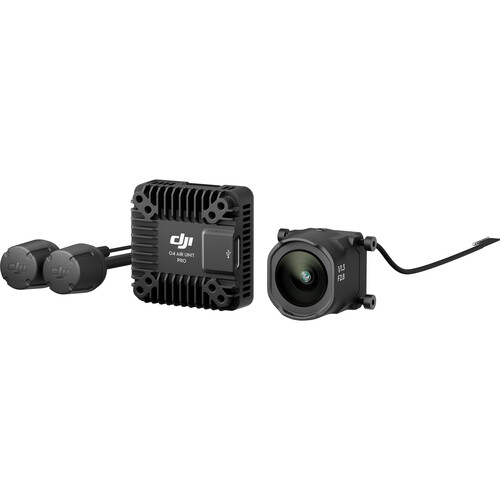

DJI O4 Air Unit Pro
Oorspronkelijke prijs was: €205.00.€194.00Huidige prijs is: €194.00. excl. IVA
- Add FPV Capabilities to Your Drone
- Fits Drone Frames as Small as 2″
- Works with DJI Goggles
- DJI O4 Transmission w/ 2T2R Antennas
- Stream 1080p100 Video
- Up to 9.3-Mile Range
- Record 4K120 Footage
- 4GB Storage with microSD Support
- 1/1.3″ CMOS with 155° FOV
- 10-Bit D-Log M Color Mode
Uitverkocht!
New stock arriving soon!
Overzicht
Enhance your cinematography skills by integrating FPV features into your non-FPV drone with the DJI O4 Air Unit Pro. This compact unit includes a camera module and dual antennas, designed to fit on frames as small as 2″. When paired with optional DJI Goggles, the O4 transmission system provides seamless 1080p video at 100 fps, with a range of up to 9.3 miles. Racing Mode further improves the experience by reducing latency to 15 ms, offering smooth and immersive first-person video. The camera module boasts a 1/1.3″ CMOS sensor that captures stunning 4K120 footage with a 155° ultrawide field of view. You can store your footage on the 4GB internal memory or extend storage with microSD cards up to 512GB.
Features
- Video capture up to 1080p120, 2.7K120, and 4K120
- 10-bit D-Log M color mode support
- 130 Mb/s maximum bit rate
- Automatic multi-channel frequency selection for the best signal
- Supports optional DJI Avata 2 ND filters to adjust exposure

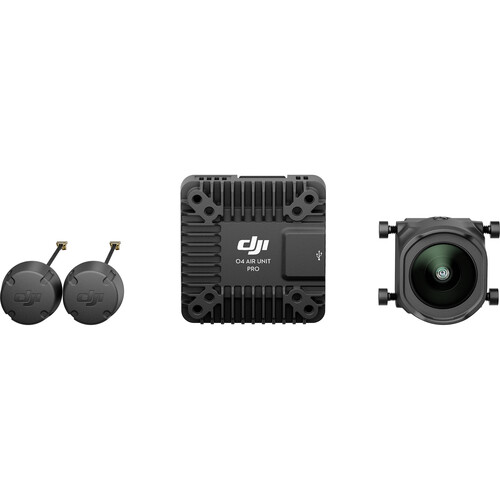

Included
DJI O4 Air Unit Pro
Camera Module
Transmission Module
2 x Antenna
3-in-1 Cable
Limited 1-Year Manufacturer Warranty
Specifications
| Camera |
Image Sensor: 1/1.3″ CMOS
FOV: 155° Equivalent Focal Length: 12mm Aperture: f/2.8 Minimum Focus Distance: 2′ / 0.6 m ISO Range (Auto): 100 to 25,600 ISO Range (Manual): 100 to 25,600 Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Format: MP4 Video Bit Rate (Max): 130 Mb/s |
| Storage Capacity |
4 GB
|
| Memory Card Type |
microSD (Up to 512 GB)
|
| Wireless |
5.8 GHz Radio/RF
|
| Mobile App Compatible |
No
|
| Type of Transmitter |
Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85
Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (CE/SRRC) Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 2T2R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH |
| Latency |
With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms
With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms |
| Power Source |
Proprietary Interface
|
| DC Input Power |
7.4 to 26.4 VDC
|
| Color |
Black
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Cable Length |
5.5″ / 140 mm (Coaxial)
3.9″ / 100 mm (3-in-1) |
| Dimensions |
1.3 x 1.3 x 0.5″ / 33.5 x 33.5 x 13 mm (Transmission Module)
1.01 x 0.9 x 0.8″ / 25.55 x 23.3 x 20 mm (Camera Module) 4.3″ / 110 mm (Each Antenna) |
| Weight |
0.6 oz / 15.6 g (Without Camera Module)
1.1 oz / 32 g (With Camera Module) 0.1 oz / 2.1 g (Each Antenna) |
