Panoramica

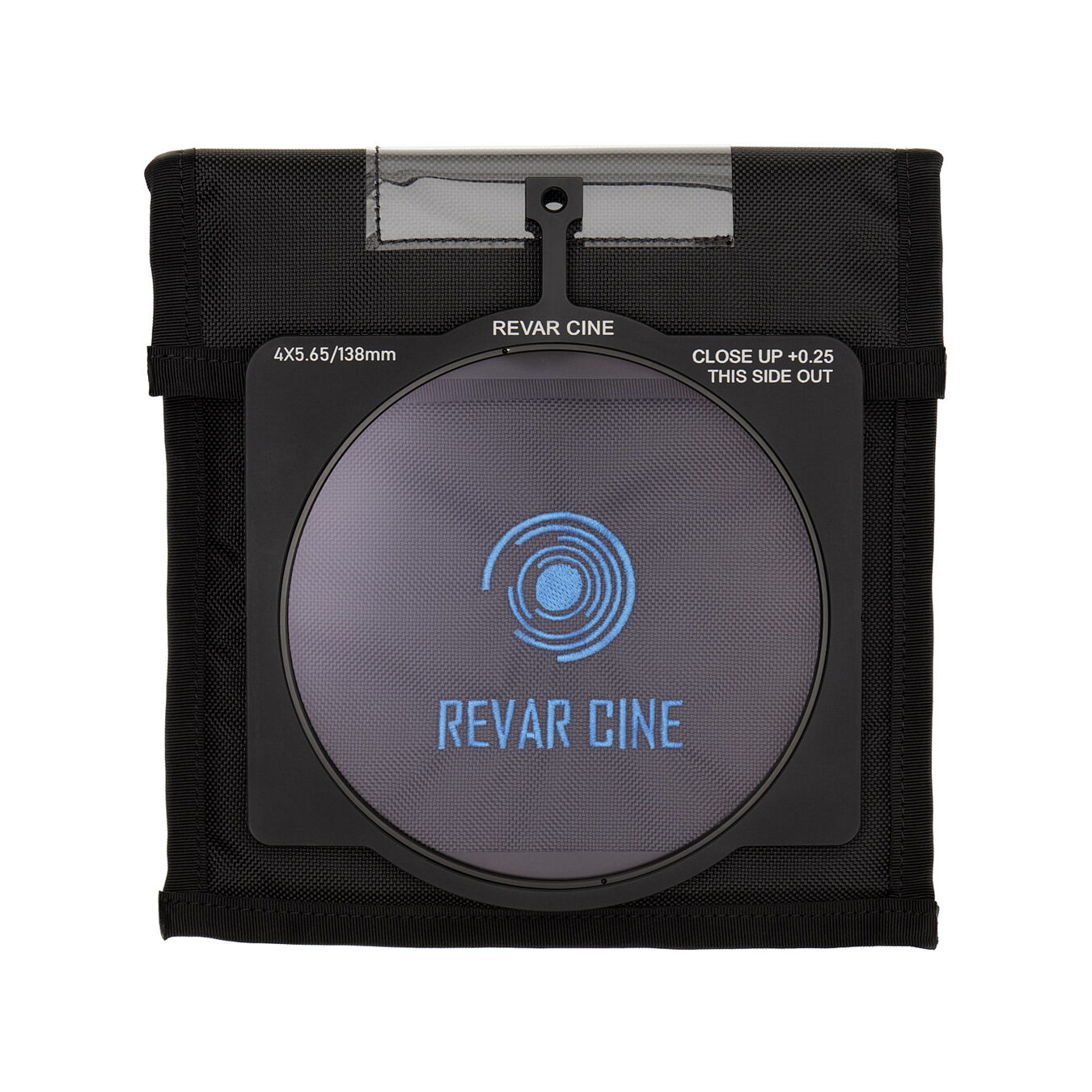

Revar Cine Single Tray diopters use our famous Rota Tray design but in a non-rotating format for diopters that do notneed to rotate. This tray style diopter eliminates the need for 138mm donut adapters. Simply place it in any matte box tray slot that accepts Arri standard width trays such as Arri LMB, Bright Tangerine Kick, Tilta T12 and others.
E' dotato di porte di ingresso e uscita
- High-quality anodized aluminum ring with scratch-resistant coatings.
- The 138mm filter allows the use of wide-angle lenses for maximum compatibility.
- The coatings are designed more closely to match the spectral transmission requirements of modern sensors.
- The filter is made of high-quality Schott BK7 glass with an index similar to your lens elements.
- It is compatible with industry-standard holders, including the Bright Tangerine Kick, ARRI LMB 4 x 5 or MB-20, Chrosziel 450, Tilta T12, and others.
Specifiche
| Filter Type |
Close-Up
|
| Diopter Strength |
+1/4
|
| Size |
4 x 5.65″ / 101.6 x 143.5 mm
|
| Front Accessory Thread / Bayonet |
138 mm
|
| Coating |
Multi-Coated
|
| Filter Material |
Glass
|
| Ring Material |
Aluminum
|
| Package Weight |
1.165 lb
|
| Box Dimensions (LxWxH) |
10.1 x 9.7 x 1.4″
|
