Panoramica

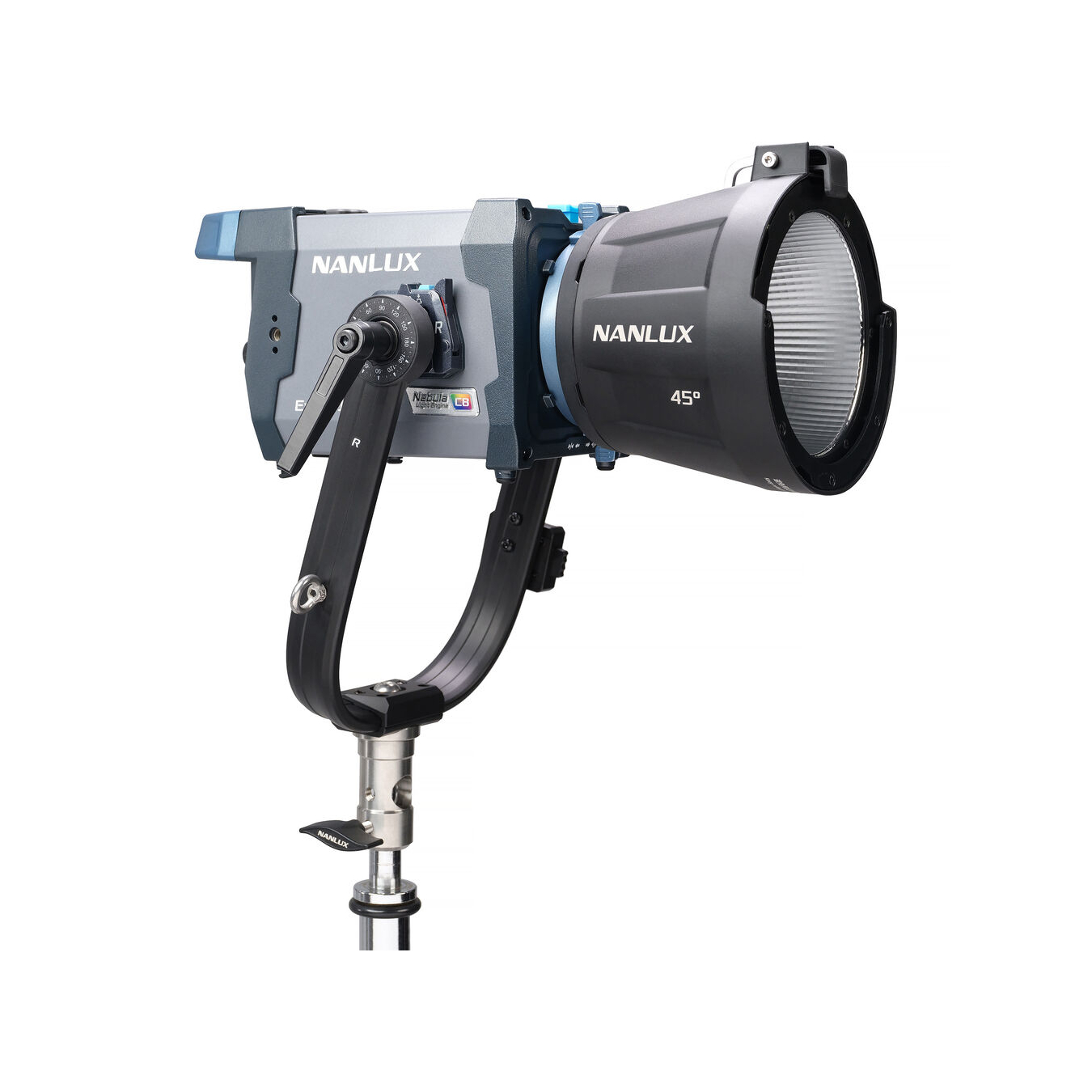

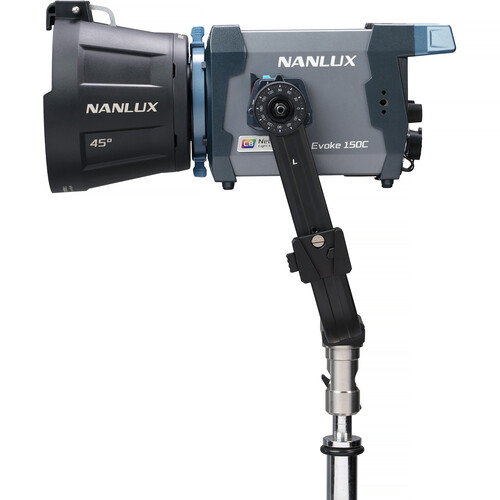

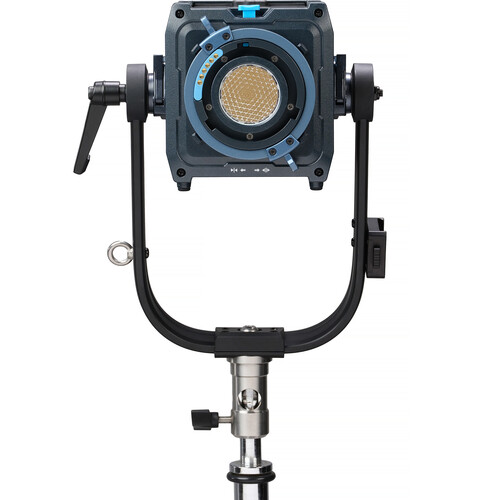

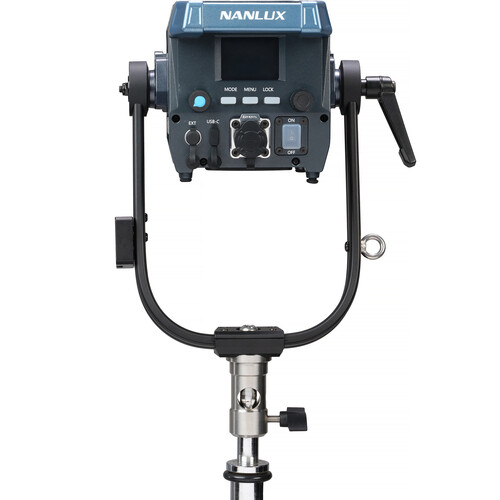

Focused on complete color control, the Evoke 150C RGB LED Spot Light from Nanlux is an ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. Developed to accommodate a variety of situations, the light’s wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. Behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 150C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, and optional wireless/wired remotes. Finally, the Evoke 150C is built around an IP66-rated housing for all-weather protection.
Incluso
- Nanlux Evoke 150C RGB LED Spot Light
- Yoke
- FE Mount Reflector (45°)
- AC Power Cable (14.7′)
- D-Tap Cable
- USB Flash Drive
- Magnetic Base
- Carry Bag
- Limited 2-Year Manufacturer Warranty
Specifiche
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
1125 fc / 12,120 Lux at 3.3′ / 1 m (Unmodified) 271 fc / 2921 Lux at 6.6′ / 2 m (Unmodified) 122 fc / 1320 Lux at 9.8′ / 3 m (Unmodified) 5600K: 1129 fc / 12,160 Lux at 3.3′ / 1 m (Unmodified) 273 fc / 2940 Lux at 6.6′ / 2 m (Unmodified) 123 fc / 1328 Lux at 9.8′ / 3 m (Unmodified) 45° at 3200K: 2103 fc / 22,640 Lux at 3.3′ / 1 m (with Reflector) 464 fc / 5000 Lux at 6.6′ / 2 m (with Reflector) 202 fc / 2177 Lux at 9.8′ / 3 m (with Reflector) 45° at 5600K: 2065 fc / 22,230 Lux at 3.3′ / 1 m (with Reflector) 459 fc / 4950 Lux at 6.6′ / 2 m (with Reflector) 200 fc / 2155 Lux at 9.8′ / 3 m (with Reflector) |
| Color Temperature |
1000 to 20,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 96
TLCI 97 SSI 78 at 5600K SSI 86 at 3200K TM-30 Rf 96 TM-30 Rg 100 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX / RDM
• 0 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
45° with Included Reflector
47° Unmodified |
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
Wireless CRMX Radio/RF *Remote Not Included |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Nanlink Functionality: Remote Control |
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Inputs/Outputs |
1x Proprietary Power Input (
100 to 240 VAC, 50 / 60 Hz 14.4 to 28 VDC) 1x USB-C Power Input (12 to 28 VDC) 1x Unspecified DMX/Remote Input *Adapter Required (Not Included) |
| Batterie |
1x D-Tap Rechargeable, 14.4 to 28 VDC (Not Included)
|
| Input Power |
14.4 to 28 VDC
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
1x USA Type-A/B Plug to Proprietary Cable (14.8′ / 4.5 m)
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Consumo di energia |
150 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
Support Mount
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount) Proprietary Accessory Mount 3x 1/4″-20 Female Thread |
| Included Adapter |
1x Non-Swivel Mount: 5/8″ Stud to Proprietary
|
| Display |
Yes
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Certifications |
BIS, CE, FCC-ID, Kcc, NCC, PSE Circle, RoHS, UKCA
|
| Dimensioni |
8.2 x 5.7 x 5″ / 20.8 x 14.5 x 12.7 cm (Fixture)
14.17 x 9.65 x 8.66″ / 35.99 x 24.51 x 22 cm (Included Storage Case) |
| Peso |
5.84 lb / 2.65 kg (Fixture with Yoke)
|
| Package Weight |
12.96 lb
|
| Box Dimensions (LxWxH) |
15.2 x 11.5 x 9.6″
|
