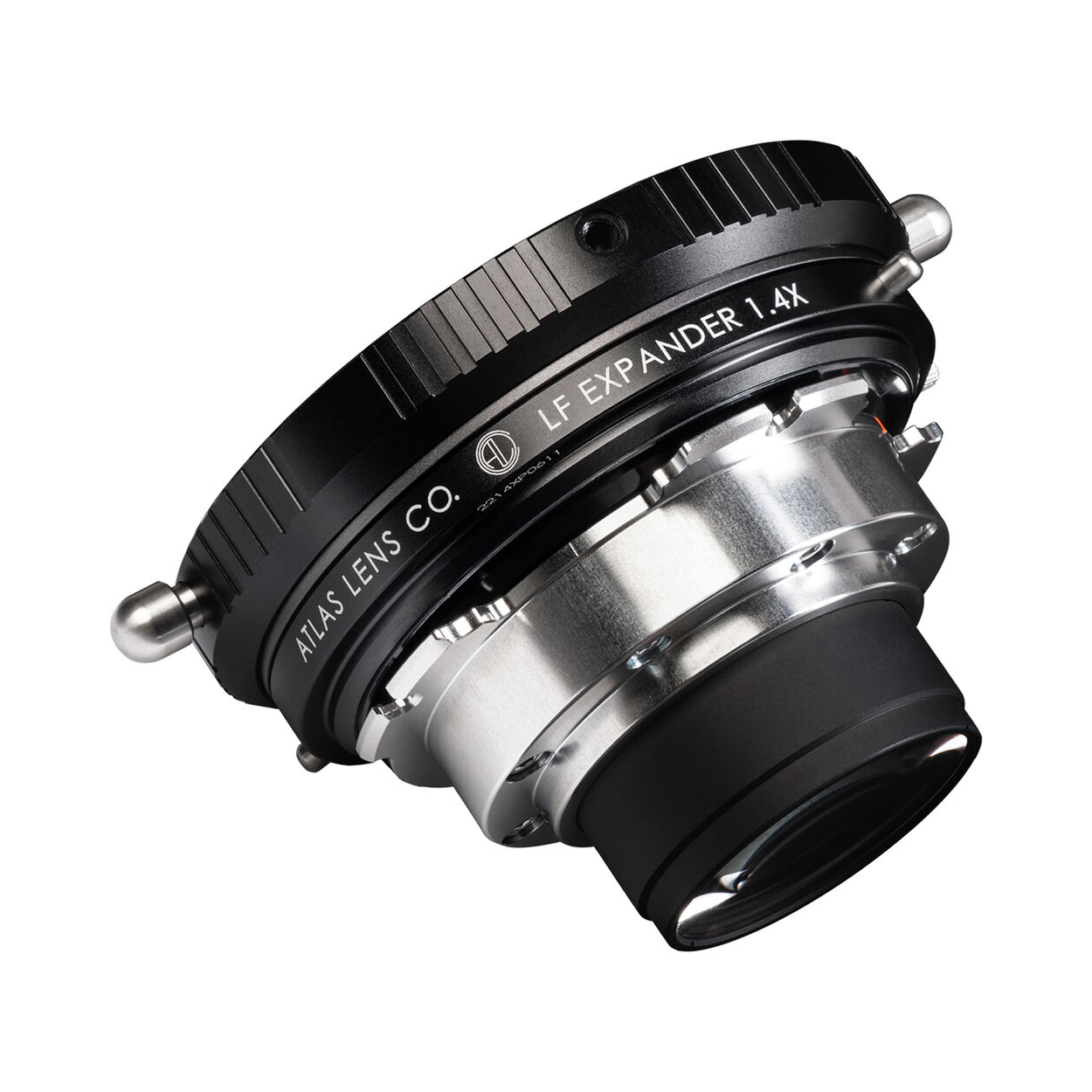

Atlas Lens Co. 1.4x LF Expander PL Lens to PL Mount

Panoramica

The Atlas LF Expander allows Orion Series lenses to provide 36mm x 24mm full-frame coverage. The 1.4x expansion offers a new creative freedom with a stylistic falloff when compared to the 1.6x LF Extender.

The 1.4x LF Expander allows our Orion Series lenses to cover Full Frame (36mmx24mm) sensors with full anamorphic coverage and with light loss of only 1 stop. We include a handy check gauge with each expander to help you ensure the rear element/cone of the lens will not interfere with the expander optics.

If used with 35mm format (non FF/LF sensor), it extends your lenses by 1.4x (100 becomes 140, 80 becomes 112, etc.)

Optimized for Atlas Orion Series lenses but compatible with other lenses as well.

E' dotato di porte di ingresso e uscita

• 1.4x magnification
• 1 stop light loss
• PL mount in, PL mount out
• Index-marked adjustable back focus for optimal lens performance
• Back focus can be used for creative lens tuning depending on your lens
• Includes clearance check gauge for rear element
• Not compatible with EF mount

Equivalent
Focal Lengths

Orion 21mm + 1.4x expander = ~29mm
Orion 25mm + 1.4x expander = ~35mm
Orion 32mm + 1.4x expander = ~45mm
Orion 40mm + 1.4x expander = ~56mm
Orion 50mm + 1.4x expander = ~70mm
Orion 65mm + 1.4x expander = ~91mm
Orion 80mm + 1.4x expander = ~112mm
Orion 100mm + 1.4x expander = ~140mm
