Überblick

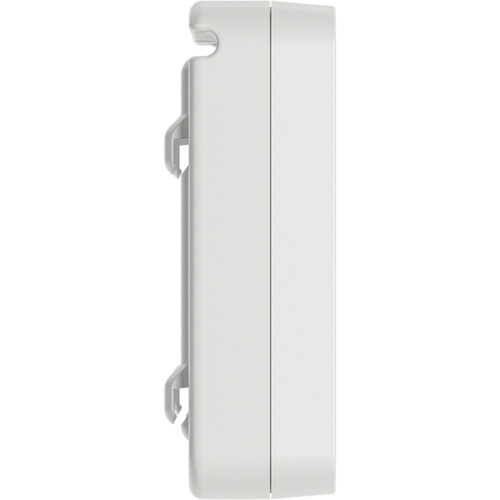

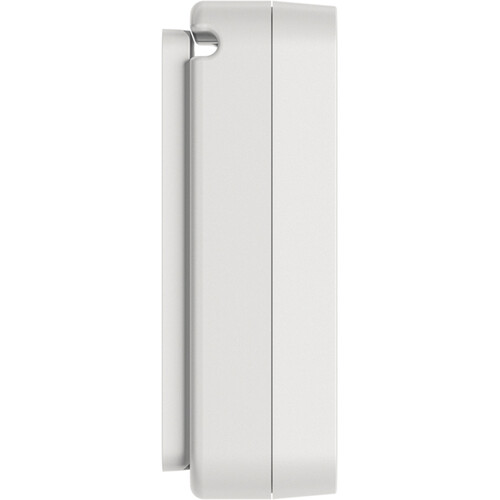

The Sennheiser AWM UHF Wallmount Antenna is crafted to improve the wireless performance of your Evolution Wireless Digital microphone system. It offers flexible installation options, enabling quick and easy setup in any room, whether on a vertical wall, horizontal ceiling, mic stand, or VESA 100 mount.
Features
- For use with Evolution Wireless Digital microphone systems
- Operates in the UHFII: 823 to 1075 MHz frequency range
- Active directional antenna
- Discreet design with fully integrated antenna
- Adjustable gain settings of -6, 0, +6, and +12 dB for different cable length
- Mountable to a wall, a ceiling, a stand (with a 3/8″-16 thread), or a VESA 100 mount
- Power supply either via BNC or DC Jack
In The Box
Sennheiser AWM UHF Wallmount Antenna for Evolution Wireless Digital Microphone Systems (UHF II: 823 to 1075 MHz)
Wallmount adapter
Drilling template
Limited 2-Year Manufacturer Warranty
Specifications
| Antenna Type |
Standard
|
| Input/Output |
1x Coaxial BNC Female
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
823 to 1075 MHz
|
| Number of Antennas |
1x Internal
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 5 to 95% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C
|
| Tilt Range |
Yes
|
| Antenna Mounting |
Not Specified by Manufacturer
|
| Material of Construction |
Plastic
|
| Color |
White
|
| Dimensions |
H: 7.1 x W: 7.1 x D: 2.1″ / H: 18.00 x W: 18.00 x D: 5.3 cm
|
| Weight |
1.54 lb / 0.7 kg
|
