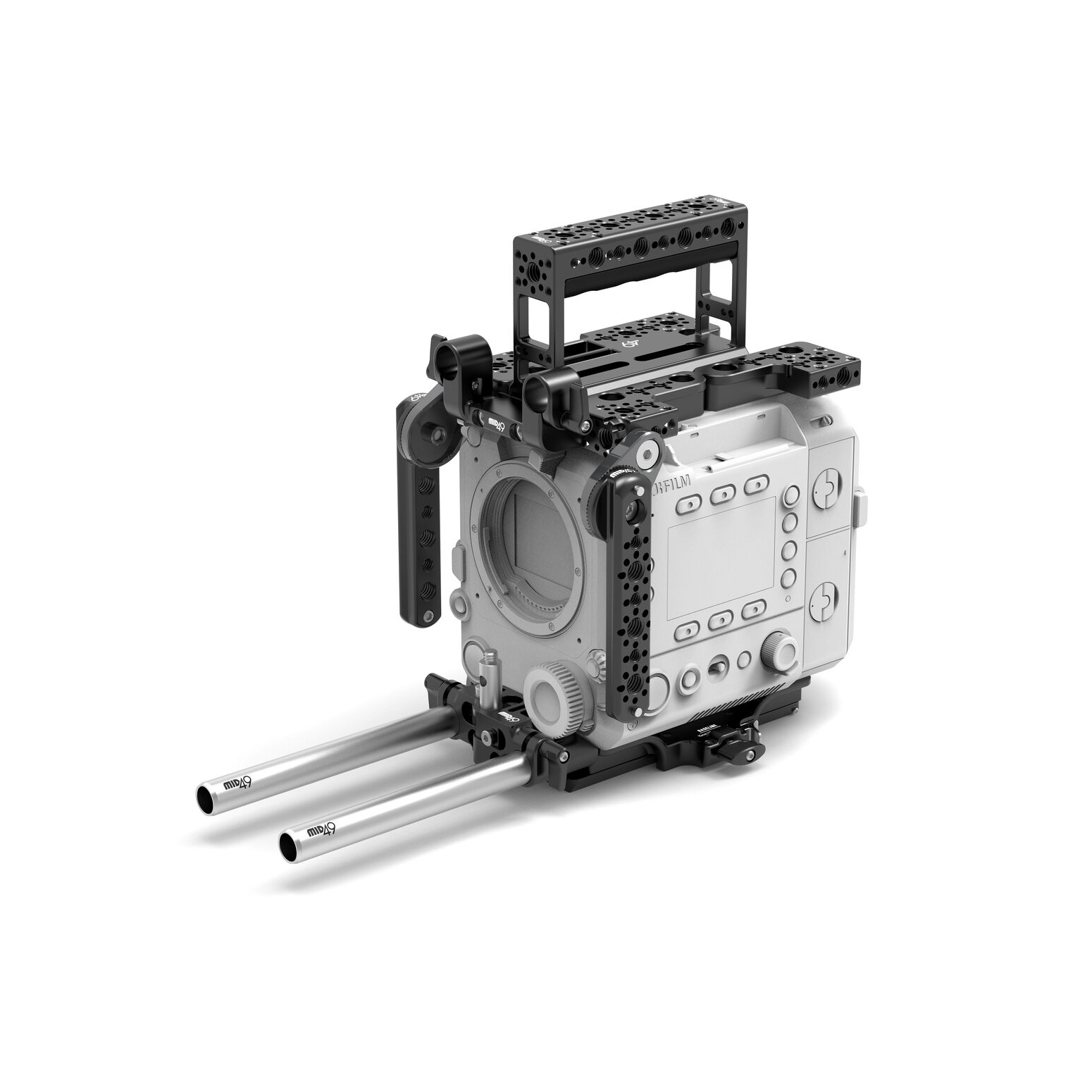

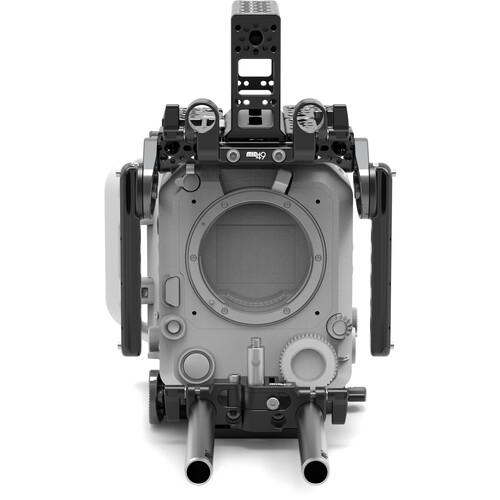

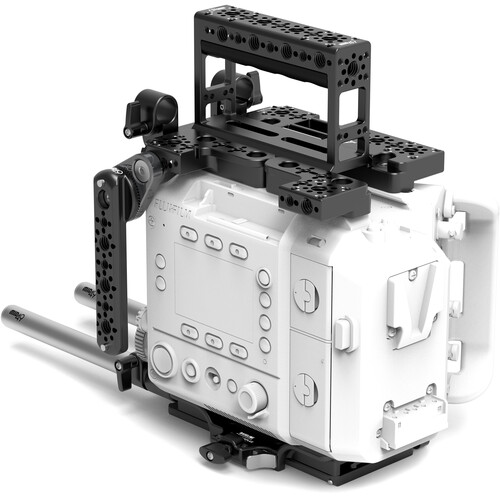

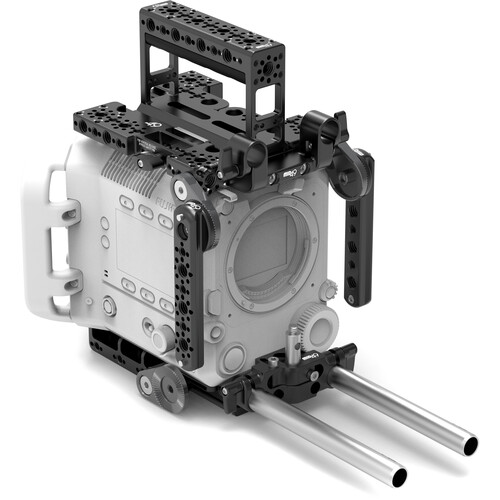

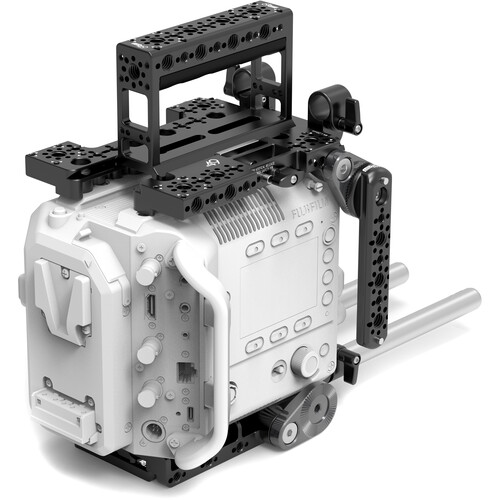

MID49 Mid Kit for FUJIFILM GFX ETERNA

Top Plate (FUJIFILM GFX ETERNA)

Attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, and M4x20mm ARRI standard threaded holes.

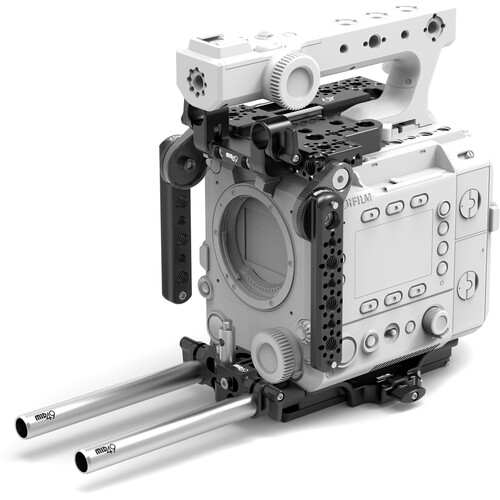

Segmented design allows the original ETERNA handle to be installed in the camera’s dovetail slot over the Top Plate. When the ETERNA top handle is removed, the smaller section of Top Plate can be added.

Baseline 15mm LW (FUJIFILM GFX ETERNA)

A baseplate that holds 15mm lightweight rods at the correct distance from the center of the lens and attaches to the bottom of the camera by three 3/8-16 screws.

The center of the LW 15mm Bracket has a 1/4-20 vertical support post, which can be used to support lens adapters like Metabones, etc.

2x Cage NATO Side Arm (ARRI 3/8-16)

Attaches to the sides of the Top Plate and provides an ARRI Rosette adjustable NATO accessory rail with safety pins on each end.

Top 15mm Rod Bracket

Attaches to the front of the Top Plate and holds two 15mm LW rods for adding focus motors, viewfinder mounts, and other accessories over the lens area.

2x 15mm Rod (6″)

Stainless steel iris rods.

Rainbow Handle (Black)

Rainbow Handle has an ARCA Swiss dovetail shape that interfaces with the Top Plate. If additional support is needed for heavy camera builds, or if you want to skip the ARCA clamp, two 3/8-16 screws are included for attaching the Rainbow Handle directly to cheeseplates with 3/8-16 screws spaced up to 76mm apart, center to center. Other colors are available, email info@mid49.com if you prefer a different colored grip.

Included

• MID49 Top Plate for FUJIFILM GFX ETERNA
• MID49 Baseline 15mm LW Baseplate for FUJIFILM GFX ETERNA
  MID49 Baseline Core for FUJIFILM GFX ETERNA
  MID49 LW 15mm Rod Bracket for FUJIFILM GFX ETERNA Cinema Camera
  MID49 Baseline ARRI-Compatible Dovetail Mounting Plate
• 2 x MID49 Cage NATO Side Arm (ARRI 3/8″-16)
• MID49 Top 15mm Rod Bracket for Sony BURANO, Canon C400, Blackmagic PYXIS & URSA Cine LF
• 2 x MID49 15mm Rod (6″)
• MID49 Grip for Rainbow Handle (Black)
