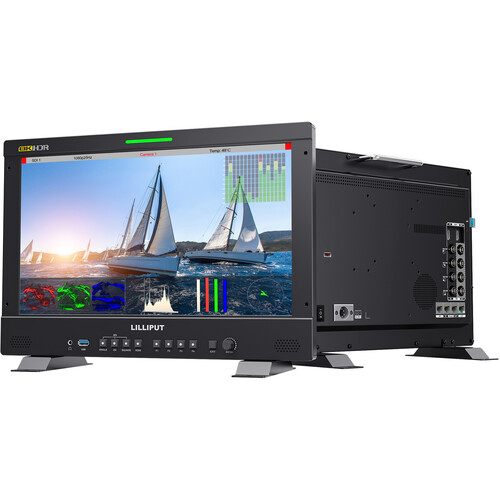

Lilliput Q15 15.6″ 8K 12G-SDI Production Monitor (V-Mount)
€1,699.00 exkl. MwSt.
- 12G-SDI and 4K HDMI 2.0 Connectivity
- 3840 x 2160 Display Resolution
- Quad-Split Multiview Display
- 8K60 Quad-Link Connectivity
- HDR and 3D-LUT Support
- Built-In Speakers, 3.5mm Earphone Jack
- Audio Vector, Histogram & Waveform
- RS-422 Remote Control Application
- Integrated Tally Light
External warehouse, approximately 10 days or more
Überblick

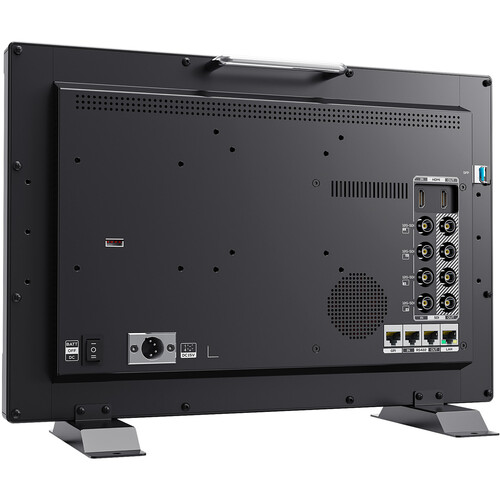

The V-mount variant of Lilliput’s Q15 15.6″ 8K 12G-SDI Production Monitor is part of the brand’s premium lineup designed specifically for professional-grade 8K video workflows. It efficiently combines four separate 12G-SDI inputs through dedicated BNC connectors situated neatly on the monitor’s rear panel, ensuring reliable and streamlined signal integration.
Included
Lilliput Q15 15.6″ 8K 12G-SDI Production Monitor (V-Mount)
15 VDC Power Adapter
VESA Mount Plate
V-Mount Plate
Set of Base Brackets
USB Flash Drive
Limited 1-Year Manufacturer Warranty
Specifications
Display
| Panel Type |
LCD
|
| Display Size |
15.6″ / 39.6 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170°
Vertical: 170° |
| Touchscreen |
No
|
| Maximum Brightness |
600 nits / cd/m2
|
| Contrast Ratio |
1700:1
|
| HDR Support |
Yes
|
| Color Gamut |
100% Rec. 709
90% DCI-P3 |
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform
|
Inputs/Outputs
| Video I/O |
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 5-Pin (24 VDC) Input
|
| Other I/O |
1x RJ45 (LAN) Input
1x RJ45 (GPI) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
Fiber/HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
Power
| Input Power |
12 to 24 VDC
|
| Batterie |
1x V-Mount on Included, Interchangeable Plate
|
| Power Consumption |
37 W
|
General
| Operating Conditions |
32 to 122°F / 0 to 50°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
15.5 x 10.5 x 1.6″ / 393 x 267 x 41.4 mm
|
| Weight |
6.6 lb / 3.0 kg
|
